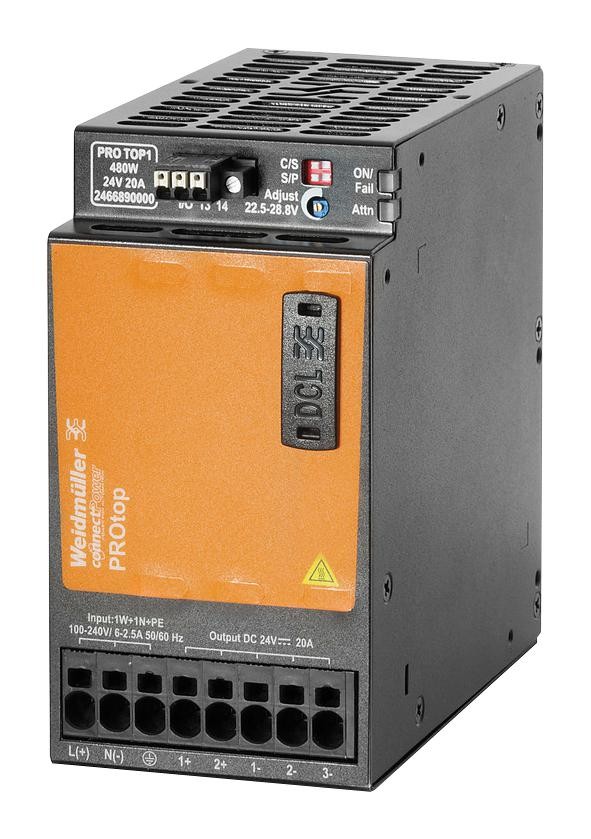

Weidmuller - PRO TOP1 480W 24V 20A

The Weidmüller PRO TOP1 480W 24V 20A (2466890000) is a high-efficiency single-phase DIN-rail switched-mode power supply designed for demanding industrial applications. It delivers a nominal \(24V\) DC output at \(20A\) (\(480W\)) with advanced DCL peak load reserves, high reliability, and excellent energy efficiency.

Key Features:

• Performance: \(24V\) DC, \(20A\) output (\(480W\) nominal), adjustable from \(22.5\text{--}28.8V\).
• Peak Load (DCL): Handles high transient loads (\(150\%\) for \(5\text{s}\) or \(500\%\) for \(15\text{ms}\)), ideal for motor startups.
• Efficiency: Up to \(93\%\) efficiency, resulting in lower energy costs and minimal heat generation.
• Robustness: Metal housing, wide temperature range (\(-25^{\circ }\text{C}\) to \(+70^{\circ }\text{C}\)), and high MTBF (\(>1,000,000\text{h}\)).
• Design: Compact, DIN-rail mounting with clamping yoke connections.
• Protection: Equipped with electronic overvoltage/short-circuit protection
